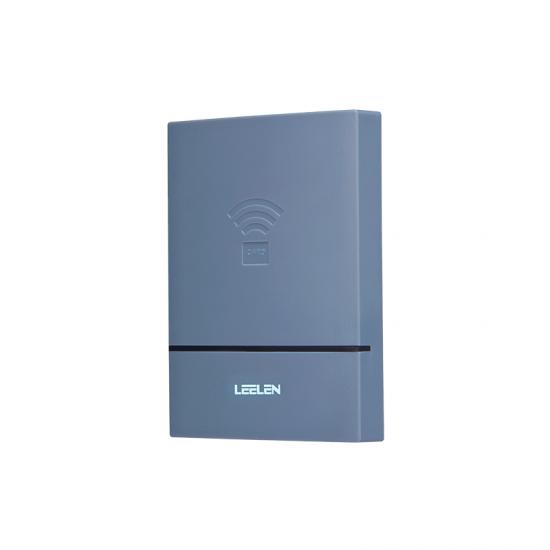

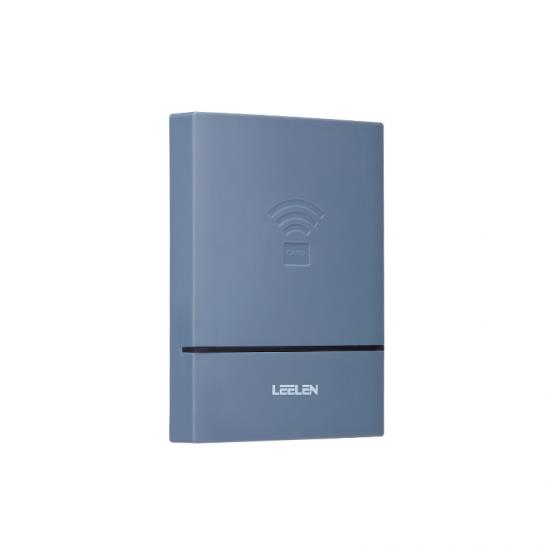

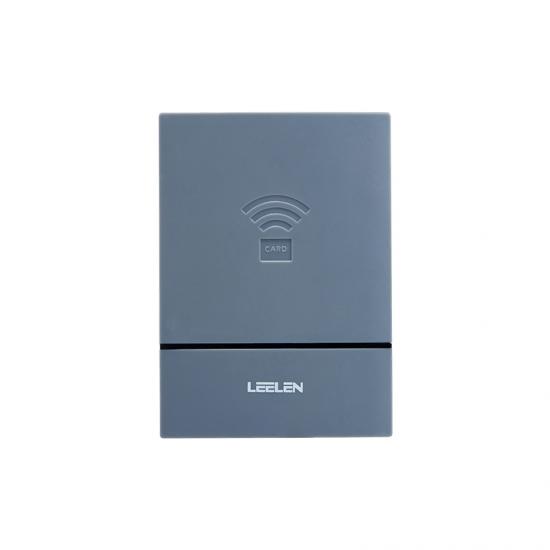

Access Control Card Reader

Access Control Card Reader RS485/Fire alarm port and IC card. The installtion way is surface mounting.

  • Item NO.:

    EH-MD-B06-EN1
  • Color:

    Grey
  • Product Detail

The Access Control Card Reader is an access controller with a plastic shell and 485 communication mode. It can be connected to a digital door host or digital access controller to realize the card opening function.


Features:

  • Plastic Housing
  • 10/100M Lan
  • Support 485 Connect
  • Card Validated by Outdoor Station or Digital Access Controller
  • Support Relay Output
  • Support Fire Signal to Lock Release



Technical Parameters:
Panel Material
Plastic
Color

Grey

Camera
None
Power Support
12~24V DC
Power Consumption
≤1.2W
Working Temperature
-20°C to 55℃
Storage Temperature
-40°C to 70°C
Working Humidity
10 to 90% RH
IP Grade
IP54
Interface
Power Input; 485 Port; Relay Output; Door Open Detecotr; Door Release Button; Fire Signal Input
Installation
Suface Mount
Dimension (mm)

120*86*19.5
