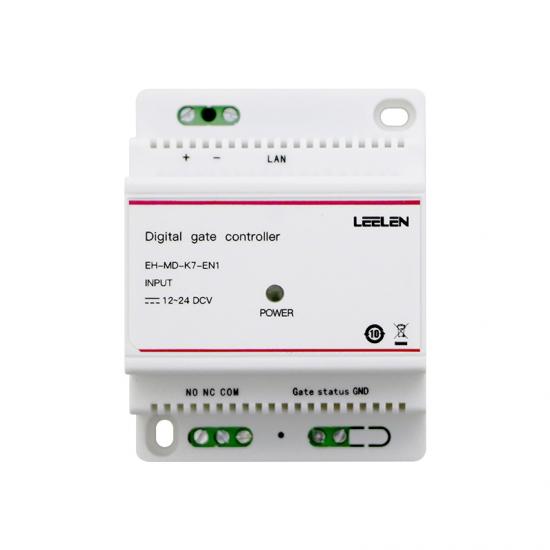

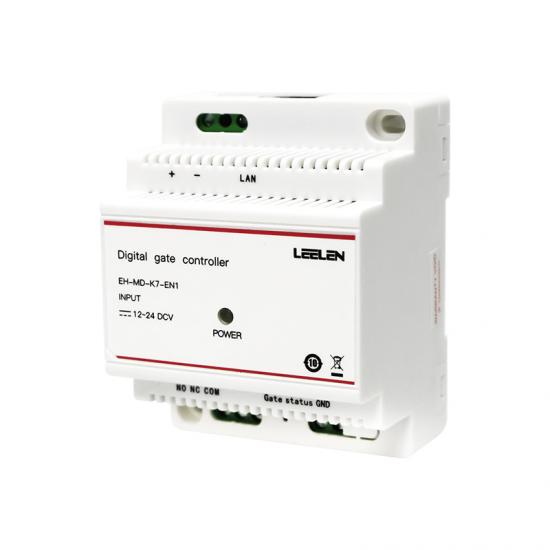

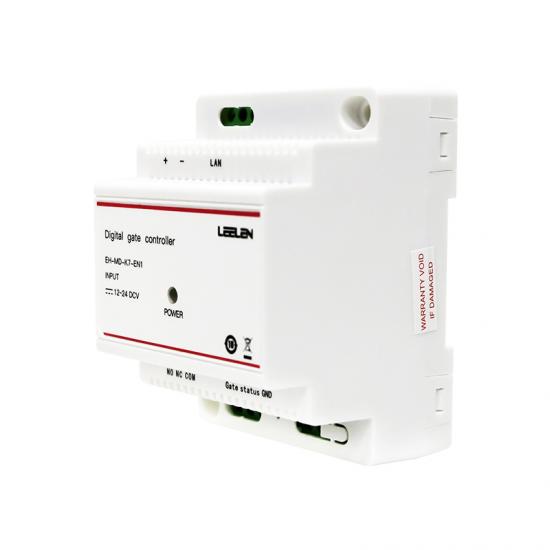

Digital Gate Controller supports remote unlock and door open derector. It features 10/100M lan.
Item NO.:
EH-MD-K07-EN1Color:
White
The Digital Gate Controller is a one-way lock controller based on TCP/IP network communication, which can be connected to the lock and door sensor interface, and supports the remote unlocking function of the door host through the network.
Features：
White
89*90*66
Technical Parameters：
Panel Material
Plastic
Color
Camera
None
Power Support
12~24V DC
Power Consumption
≤1W
Working Temperature
-40°C to 55℃
Storage Temperature
-40°C to 70°C
Working Humidity
10 to 90% RH
IP Grade
IP54
Interface
Power Input; Lan Port; Relay Output; Door Open Detector;
Installation
DIN-Rail Mount
Dimension (mm)
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Categories

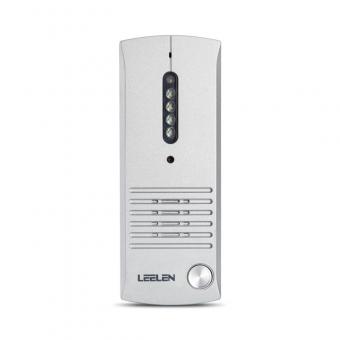

Model 9 Outdoor Intercom Panel is made of cast-aluminum in order to be anti-vandal and waterproof. Its button is with Backlight LED for operation at night.
ZigBee K3 intelligent curtain motor is a curtain opening and closing intelligent motor, which needs to be used with ZigBee gateway to realize intelligent control, timing switch, scene linkage and other functions. The product has the advantages of high torque and low noise, and can carry the extraordinary torque of 60KG curtain to meet the needs of standard home; Dc movement, small vibration, low power consumption, safe and efficient. With the Lilin smart home system, it can realize panel control, intelligent terminal control, voice control, APP remote control and other control methods.
Model 9 Outdoor Intercom Panel is made of cast-aluminum in order to be anti-vandal and waterproof. Its button is with Backlight LED for operation at night.

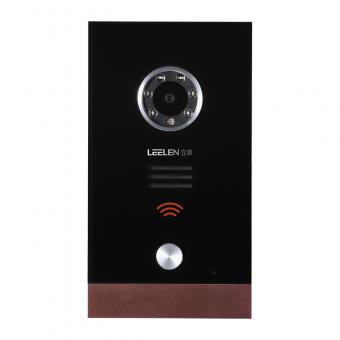

Hot Sale Video Door Phone Model 15F is a villa video door phone with an aluminum panel + tempered glass appearance. It has mechanical buttons, supports swiping cards and embedded installation, which is used for villa building intercom systems.
