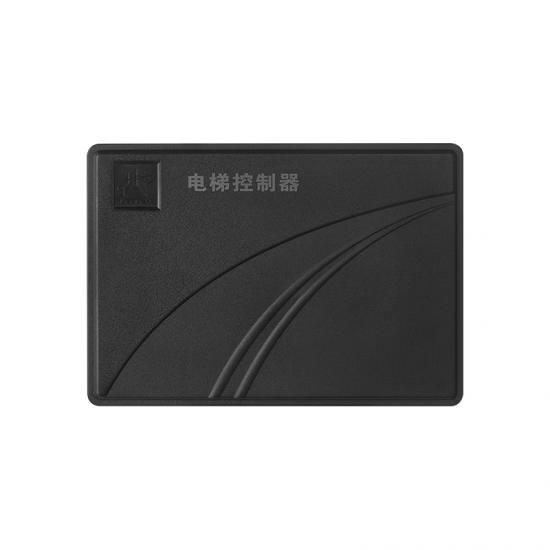

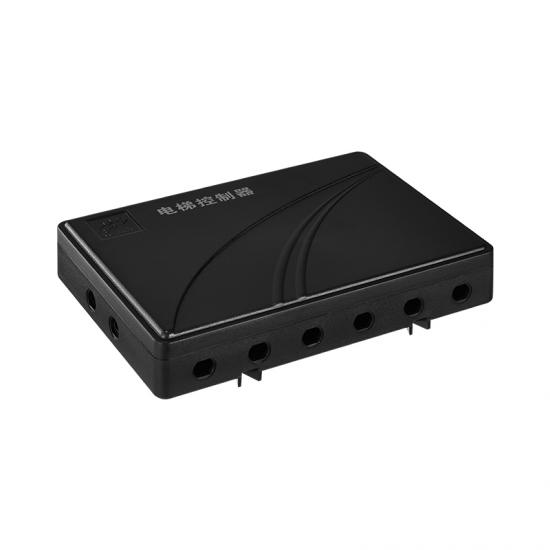

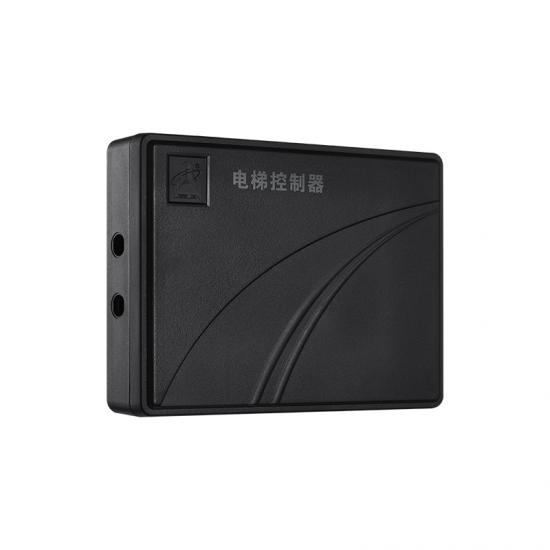

Dry Contact Elevator Controller

Dry Contact Elevator Controller supports 485 connector and 16 signal output.  Connecting to digital elevator and receive lift control command.

  • Item NO.:

    EH-MD-B03-EN1
  • Color:

    Black
  • Product Detail

The dry contact elevator controller is a device that realizes call and elevator control by controlling the elevator button in the elevator car or the elevator call button in the waiting room. It receives the elevator control through the reader in the car connected to the digital elevator controller Instructions to realize the function of calling and elevator control.


Features:

  • Plastic Housing
  • Support 485 Connector
  • Support 16 Signal Output
  • Connect to digital Elevator and Receive Lift Control Command
  • Expansion Via 485 Connection and Support Max 64 Layer



Technical Parameters:
Panel Material
Plastic
Color

Black

Camera
None
Power Support
12~24V DC
Power Consumption
≤1W
Working Temperature
-20°C to 55℃
Storage Temperature
-40°C to 70°C
Working Humidity
10 to 90% RH
IP Grade
IP30
Interface
Power Input; 485 Port; Signal output *16
Installation
Suface Mount
Dimension (mm)

200*140*41.5
