Four-wire Digital Outdoor Intercom Station Model 18

Four-wire Digital Outdoor Intercom Station Model 18

Model 18 Digital Outdoor Intercom Station supports power lock/ relay out and video intercom. It is generally used in Villa digital system.

  • Item NO.:

    JB-305MGCQ-S18AI
  • Color:

    Grey
  • Product Detail

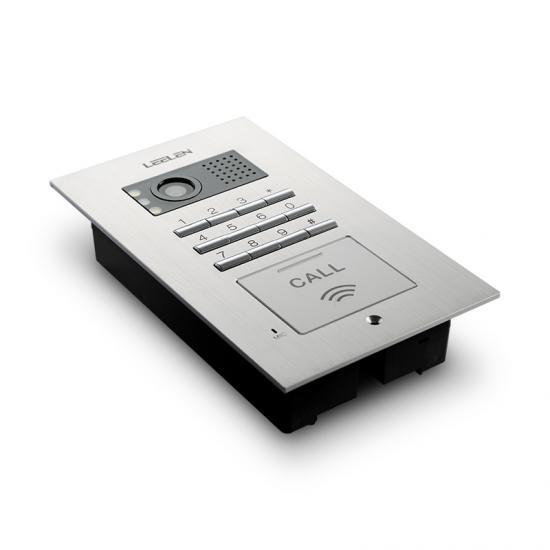

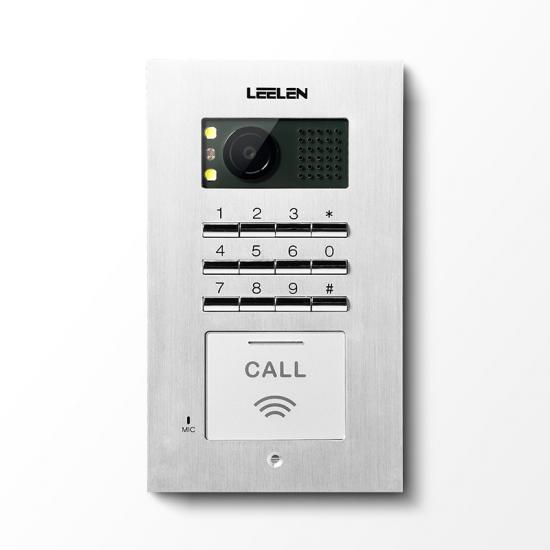

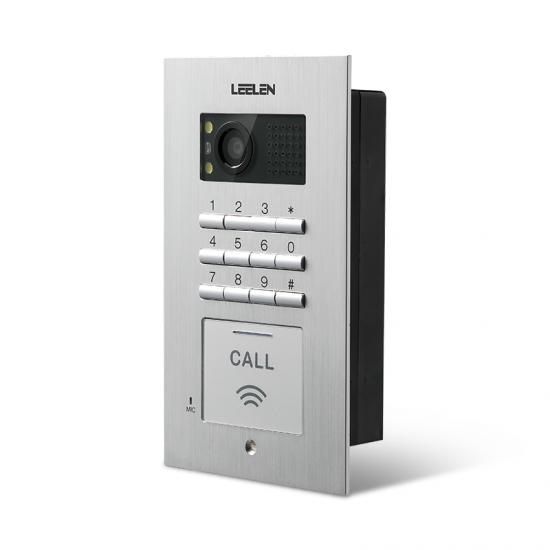

Model 18 Digital Outdoor Intercom Station with aluminum panel and password keyboard, which supports IC card and password to open the door. It adopts four-wire connection and supports villa intercom system with a maximum of 4 outdoor stations + 4 extensions.


Features:

  • Alumimum Panel
  • Four Wire system
  • White Light
  • Unlock by Password & IC Card
  • Support Power Lock/ Relay Out
  • Support Lock Release Button
  • Support Video Intercom
  • Support Video Monitor


Technical Parameters:
Panel Material

Alumimum

Color
Grey
Camera

1/3" CMOS 90°(D)

Light
White Light
Button Type
Mechanical
IC Card Support
Speaker
Built-in Loud speaker
Microphone
Built-in Microphone
Power support
18V DC
RS 485 Port
Support
Door Button
Support
Power Lock
Support
Relay Out
Support
Signal Out
Not Support
Max Power Consumption
4W
Working Temperature
-25°C ~ +55°C
Storage Temperature
-40°C ~ +70°C
Working Humidity
10~90% RH
IP Grade
IP54
Interface
Comm Bus *2; Lock release port; Power Lock Port; Relay Port;
Installation
Flush Mount
Resolution 100*145*40mm
