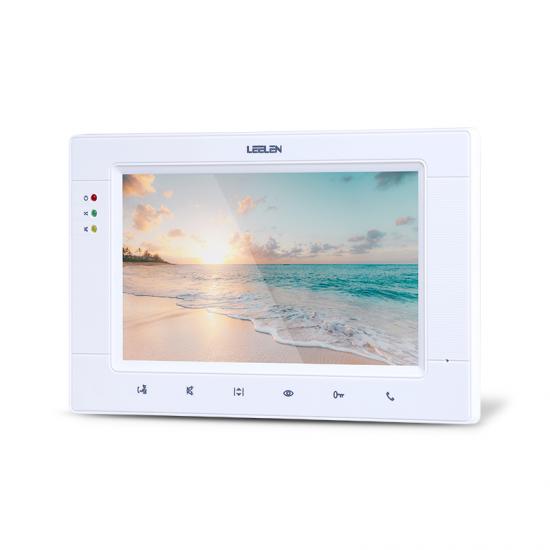

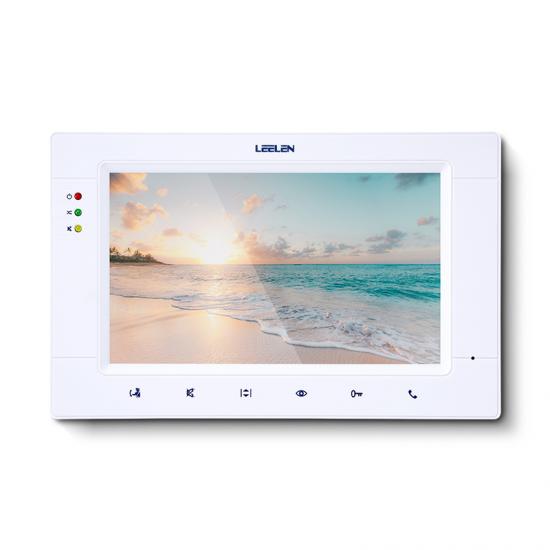

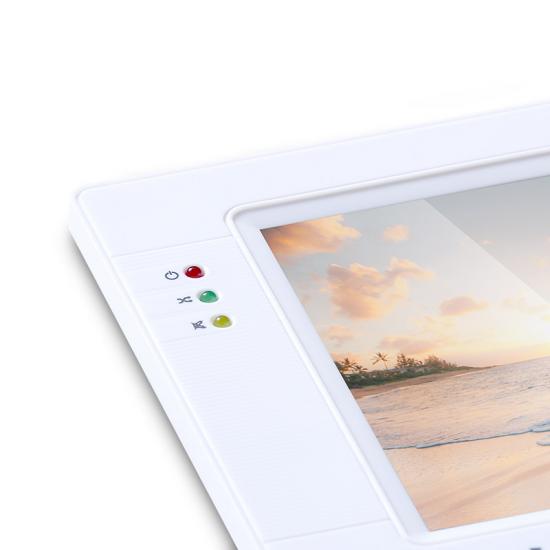

V34 Touch Button Four Wire System Villa Indoor Station combines unlock function and video monitor. At the same time, it supports video intercom and calling transfer.
Item NO.:
JB305-IS-V34-001Color:
White
V34 Touch Button Four Wire System Villa Indoor Station is a villa intercom system with a plastic panel and touch buttons, which is four-wire connection. This unit supports for calling intercom with the outdoor station, unlocking, monitoring outdoor station video, and support for call forwarding.
Features：
White
210*130*16.5mm
Technical Parameters：
Panel Material
Plastic
Color
Display
7-inch TFT LCD
Operation
Capacitive Touch
Speaker
Built-in Loudspeaker
Microphone
Built-in Microphone
Power Support
18V DC
Video In
Support
Power Consumption
3.6W
Working Temperature
-20°C to 55℃
Storage Temperature
-40°C to 70°C
Working Humidity
10 to 90% RH
IP Grade
IP30
Interface
Power Port; Comm Bus Port *2; Video In port
Installation
Surface Mounting
Dimension (mm)
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
